13 listed sizes
Each size is a separate live variant with its own price and availability.
120-GRIT DRUM-SANDER FEED BELTS
Replacement Conveyor Feed Belts for Drum Sanders
Abrasive-surface conveyor belts in 13 listed sizes for moving stock through compatible drum sanders.
4.7 / 5 from 203 reviews- The 120-grit surface provides traction to move the workpiece through the sander.
- Heavy polyester cloth backing is used for the current replacement-belt construction.
- Choose from 13 listed dimensions—but measure the existing belt before ordering.
Regular price
$54.06
Sale price
$54.06
Regular price
Shipping calculated at checkout.
Available in stock
Measure the existing conveyor belt first
Machine revisions can use different belt dimensions. Select by verified width and length, not by brand or model name alone.
Couldn't load pickup availability
Secure payment
Payment methods
Available payment methods appear at checkout.
FIT IS A MEASUREMENT, NOT A MODEL ASSUMPTION
Restore consistent workpiece feeding with the correct belt dimensions
The abrasive face is used for grip rather than surface sanding. The replacement belt must match the machine width and loop length, then be tensioned and tracked according to the drum-sander manual.
120-grit traction surface
The abrasive surface helps grip and transport the workpiece through the sanding drum.
Customer-verified rating
4.7 out of 5 from 203 reviews. Available review content appears below.
DECISION GUIDE
How should you choose the replacement size?
Measure first. The current product record lists common machine examples, but it also warns that manufacturers have changed dimensions across versions.
Measure belt width
Measure the full usable width of the existing conveyor belt, not the drum width or the nominal machine name.
Measure the complete loop length
Remove and lay out the old belt when the machine procedure allows, or use the measurement method specified by the machine manufacturer.
Match one exact listed size
Choose only a variant that matches the verified dimensions. Contact Maverick before ordering if the measurement falls between listed sizes.
Use model names only as a cross-check
Jet, SuperMax/Laguna, Grizzly, Performax, and Delta examples appear in the current record, but the measured belt dimensions control the order.
MEASURE BEFORE ORDERING
Machine model names are reference points—not fit guarantees
The original page warns that manufacturers have changed conveyor-belt dimensions across machine versions. Measure the existing belt's full width and loop length, then match one exact live selector size.
Fit responsibility: Do not order solely from the model list below. Some historical references conflict with one another or do not match a currently listed selector size. When the old belt cannot be measured confidently, check the machine manual or contact Maverick before ordering.
INSTALLATION VIDEO
Measure, install, tension, and track the feed belt
The original installation video is retained below. After installation, run the conveyor slowly without stock and make small tracking adjustments; the original tip specifies quarter-turn increments.
ORIGINAL MACHINE-FAMILY OVERVIEW
Which drum-sander brands and model families are referenced?
The original page names these families to help customers begin the fit check. They are not a substitute for measuring because revisions within a model family can use different conveyor dimensions.
10-20, 16-32, 22-44, Plus, Performax, and JWDS references
Several JET and JET/Performax generations appear in the original guide—and some use conflicting dimensions. Identify the exact generation and measure the existing loop.
16-32, 19-38, 25, 25-50, 25x2, and 37 references
The original overview names SuperMax/Laguna families, while the detailed guide supplies dimensions for selected configurations. Do not infer an unlisted dimension from the nominal drum width.
G0458, G0458Z, and related 18- to 20-inch formats
The detailed original reference pairs the G0458 family with an 18 × 44-1/2 belt, but the existing belt measurement still controls.

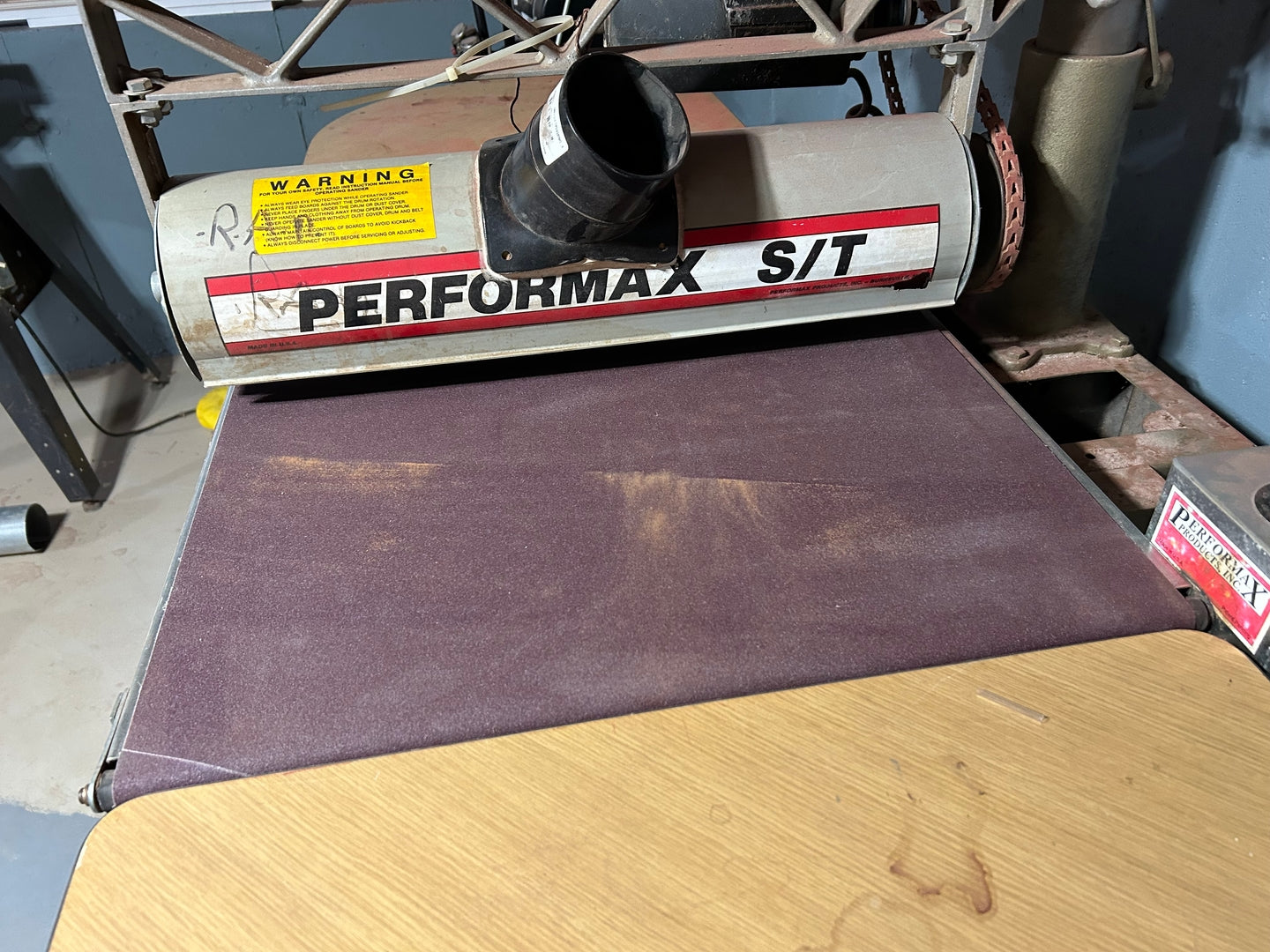

Older 16-32, 22-44, ShopPro 25, and Super 25 references
Older Performax-related names occur across several dimension notes. Match the machine plate and measured belt rather than choosing from the family name alone.
18-36 and X5 reference
The original guide associates this family with an 18 × 47-1/2 belt. Measure before ordering because machine history and modifications can affect fit.
Contact Maverick when the measured size is not listed
Do not round or choose the closest option. Supply the machine identification and exact belt width and loop length for help reviewing the available choices.
13 LIVE SIZE OPTIONS
Which conveyor-belt sizes and machines are listed?
These model references come from the original page. The green label means the exact dimension is currently selectable; it does not guarantee fit for every revision of the named machine.
JET 10-20
Original model reference: JET 10-20.
LIVE SELECTOR SIZEGrizzly G0458
Original references include G0458, G0458Z, and similar 18- to 20-inch configurations.

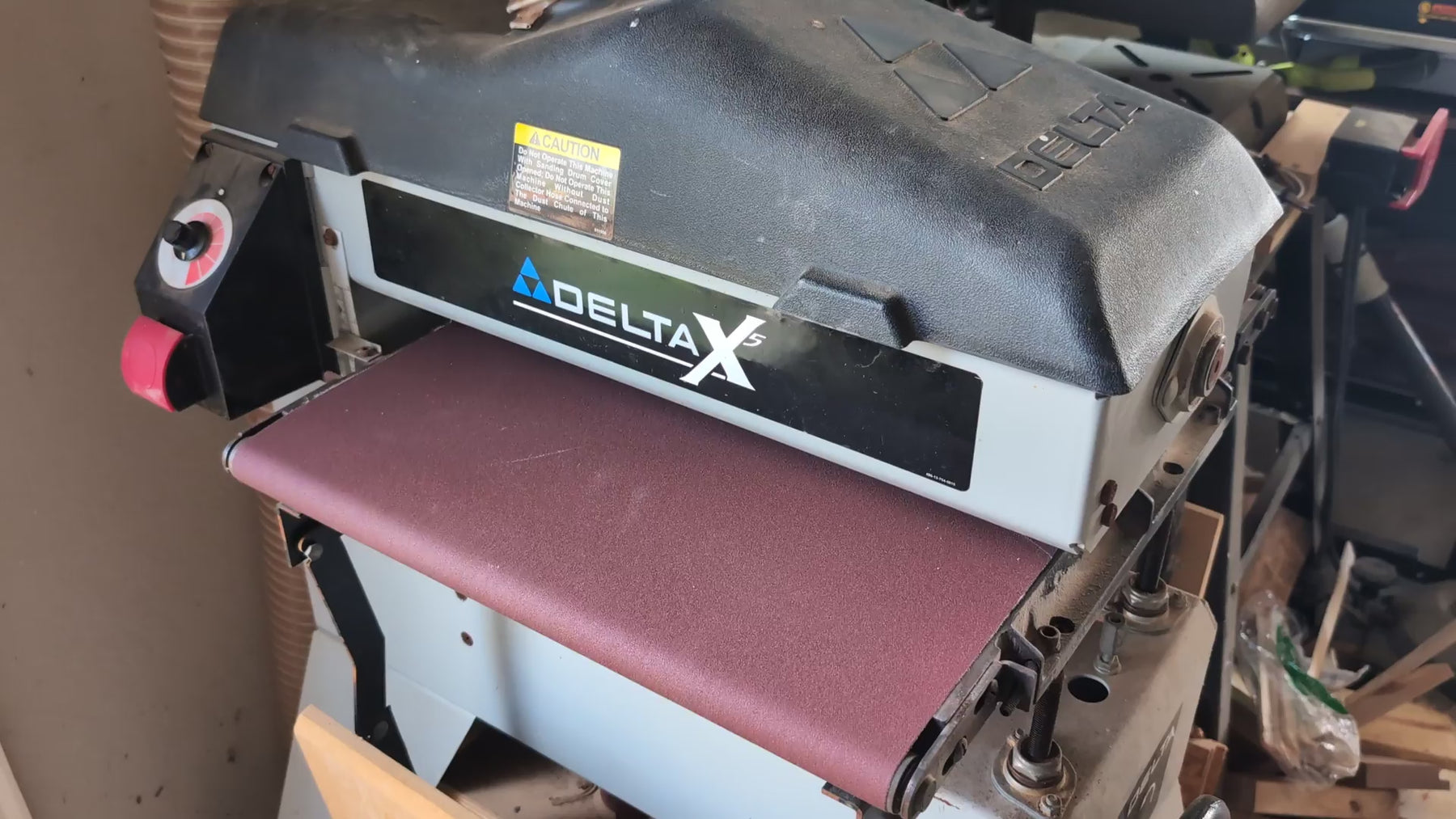

LIVE SELECTOR SIZEDelta 18-36 / X5
Original reference: Delta 18-36 and Delta X5.
LIVE SELECTOR SIZEPerformax 22-44 PRO / ShopPro 25 / SuperMax 25
The original page also associates this general size with an older JET 2244 reference.
LIVE SELECTOR SIZEPerformax Super 25
Original reference: Performax Super 25.
LIVE SELECTOR SIZESuperMax 25-50
Original reference: SuperMax 25-50.
LIVE SELECTOR SIZEJET 16-32 / Performax
One original reference lists this size for JET 16-32 and older Performax units. Another original reference lists 17-1/4 × 38-1/4 for JET 1632, so measurement is essential.
LIVE SELECTOR SIZESuperMax 25x2
Original reference: SuperMax 25x2.
LIVE SELECTOR SIZESuperMax 37
Original reference: SuperMax 37.

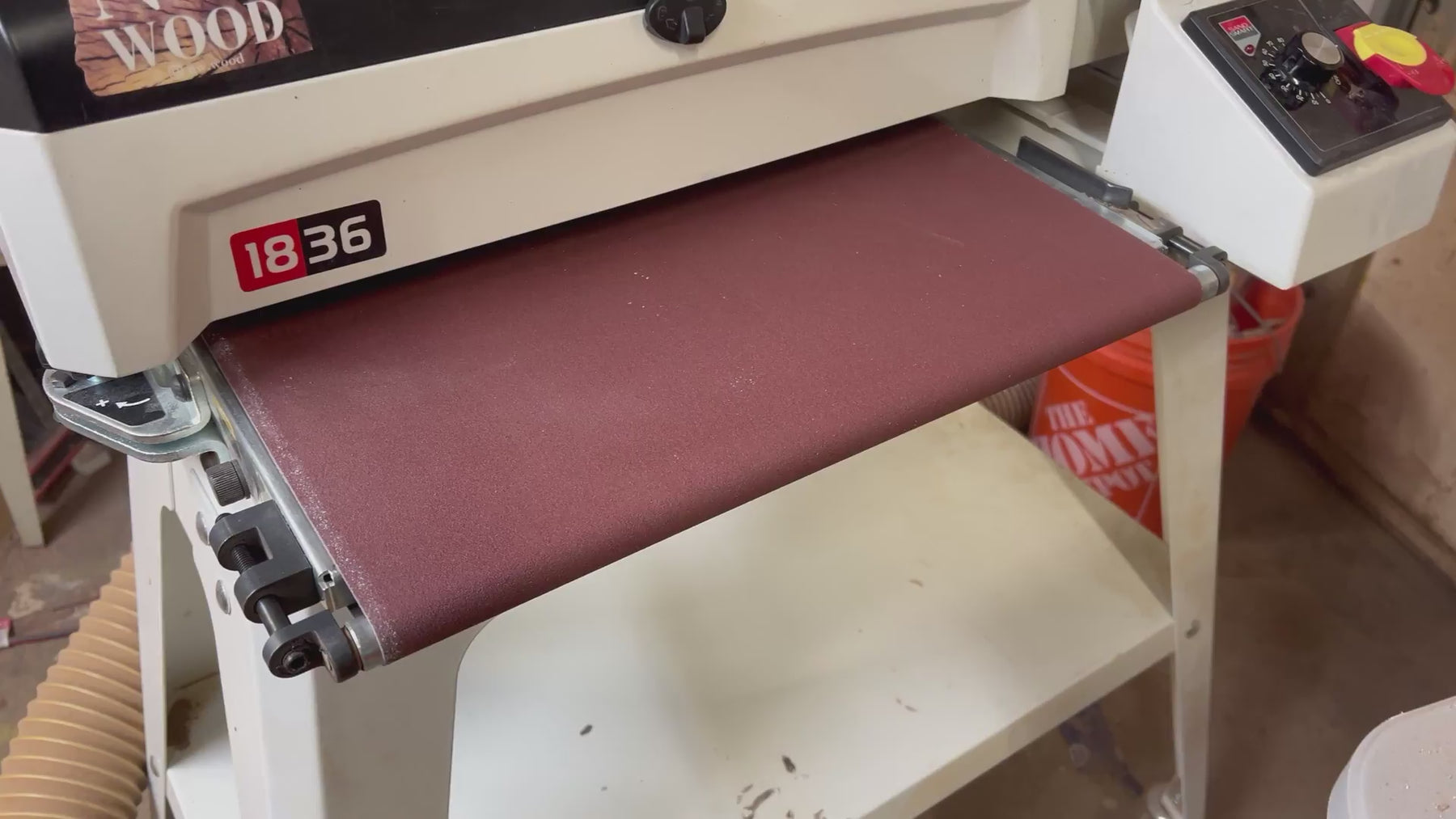

LIVE SELECTOR SIZEJET 1632 / JET 1836
The original page lists both model names with this size. Confirm the exact machine revision.
LIVE SELECTOR SIZESuperMax 1632
Original reference: SuperMax 1632.
LIVE SELECTOR SIZEJET JWDS 22-44
Original reference: JET JWDS 22-44.
LIVE SELECTOR SIZEJET JWDS 22-44OSC
Original reference: JET JWDS 22-44OSC.
LIVE SELECTOR SIZEHistorical sizes not currently selectable: The original copy also mentions 22 × 47-1/2 for a JET 22-44 Plus and 23-1/4 × 62 for a JET 2244 / Old 25. Neither exact dimension is a current selector option. Measure and contact Maverick rather than choosing the nearest size.
CONSTRUCTION AND TRACKING
What does the 120-grit surface do?
The abrasive face grips the workpiece
The 120-grit surface functions like a traction layer that moves stock through the sander. It is not the abrasive that sands the top face of the workpiece.
Heavy polyester cloth backing
The original page presents this construction as a cost-effective alternative to typical manufacturer feed belts and attributes its replacement-belt durability to the heavy polyester backing. Actual service life depends on tension, tracking, load, contamination, and machine condition.
Described as bidirectional
The original product record describes the replacement belt as bidirectional. Follow any direction marking on the delivered belt and the machine manual if either specifies a running direction.
Run slowly and adjust in small increments
Set even initial tension, run without stock at low speed, and make small tensioning-bolt adjustments. Stop before correcting edge contact, drift, or unstable tracking.
Select the exact measured width and loop length
Do not round to the nearest listed size. Contact Maverick when the old belt is damaged, stretched, missing, or difficult to measure accurately.
RELATED DRUM-SANDER ABRASIVES
Looking for the sanding wrap instead of the conveyor belt?
The original page linked both drum-wrap constructions. These products wrap the sanding drum; they do not replace the conveyor feed belt.
PLAIN BACKING
Drum sander rolls without hook-and-loop backing
Continuous aluminum oxide abrasive rolls cut to fit compatible clamp-style drum sanders.
HOOK-AND-LOOP BACKINGDrum sander roll with hook-and-loop backing
Continuous abrasive roll for compatible drum sanders that require hook-and-loop attachment.
MACHINE REFERENCES FROM THE ORIGINAL PAGE
Examples retained for customers comparing drum-sander formats
These are external equipment examples from the original page, not fit guarantees or current price claims. Verify the machine specification independently.
HOW TO USE IT
Install and track the replacement before sanding stock
Follow lockout, tension, tracking, and conveyor-access instructions in the drum-sander manual.
- 01
Disconnect and lock out power, then remove conveyor access components as the machine manual directs.
- 02
Confirm the replacement belt exactly matches the measured width and loop length.
- 03
Install the belt with the abrasive traction face oriented as specified and set initial tension evenly.
- 04
Run at low speed without a workpiece and make small tracking adjustments according to the machine manual.
- 05
Verify centered tracking and stable feeding before returning the sander to production.
Use the guarding, extraction or collection, personal protective equipment, training, and operating procedures required by the machine, abrasive product, work material, and workplace.
Use it for
- Compatible drum-sander conveyor systems
- Replacing a measured belt that matches one listed size
- Restoring traction for controlled stock feeding
- Bidirectional running where the machine and delivered belt allow it
- Woodworking production with the correct conveyor setup
Do not use it for
- Ordering by machine model without measuring
- A size that is close but not an exact verified match
- Using the feed belt as the sanding abrasive
- Operating with poor tracking, uneven tension, or edge contact
- Installation or adjustment with the machine energized
PRODUCT FAQ
Questions before you choose?
Why is the conveyor belt made with 120-grit abrasive?
The abrasive surface is used for traction so the conveyor can grip and move the workpiece through the drum sander. It is not the abrasive that sands the top face of the workpiece.
How do I choose the correct conveyor-belt size?
Measure the existing belt width and complete loop length using the machine manufacturer’s procedure. Match those measurements to one exact variant.
Can I order by drum-sander model number?
Use the model only as a cross-check. The current product record warns that belt dimensions can vary across machine revisions, so the measured belt size controls the order.
Can the conveyor belt run in either direction?
The existing product record describes the belt as bidirectional. Follow the machine manual and any marking on the delivered belt if either specifies a running direction.
How should I track the new conveyor belt?
Run the conveyor slowly without stock and make small, even tension adjustments according to the machine manual until the belt stays centered.
What are the shipping and return terms?
Shipping methods, rates, and delivery estimates depend on the order and destination and are shown at checkout. The return policy provides a 30-day window for eligible unused items in original condition and packaging. Restrictions and return-shipping costs apply.
READY TO CHOOSE?
Measure twice, then choose the exact feed-belt size
Select the verified width and loop length and confirm the current price and availability.
