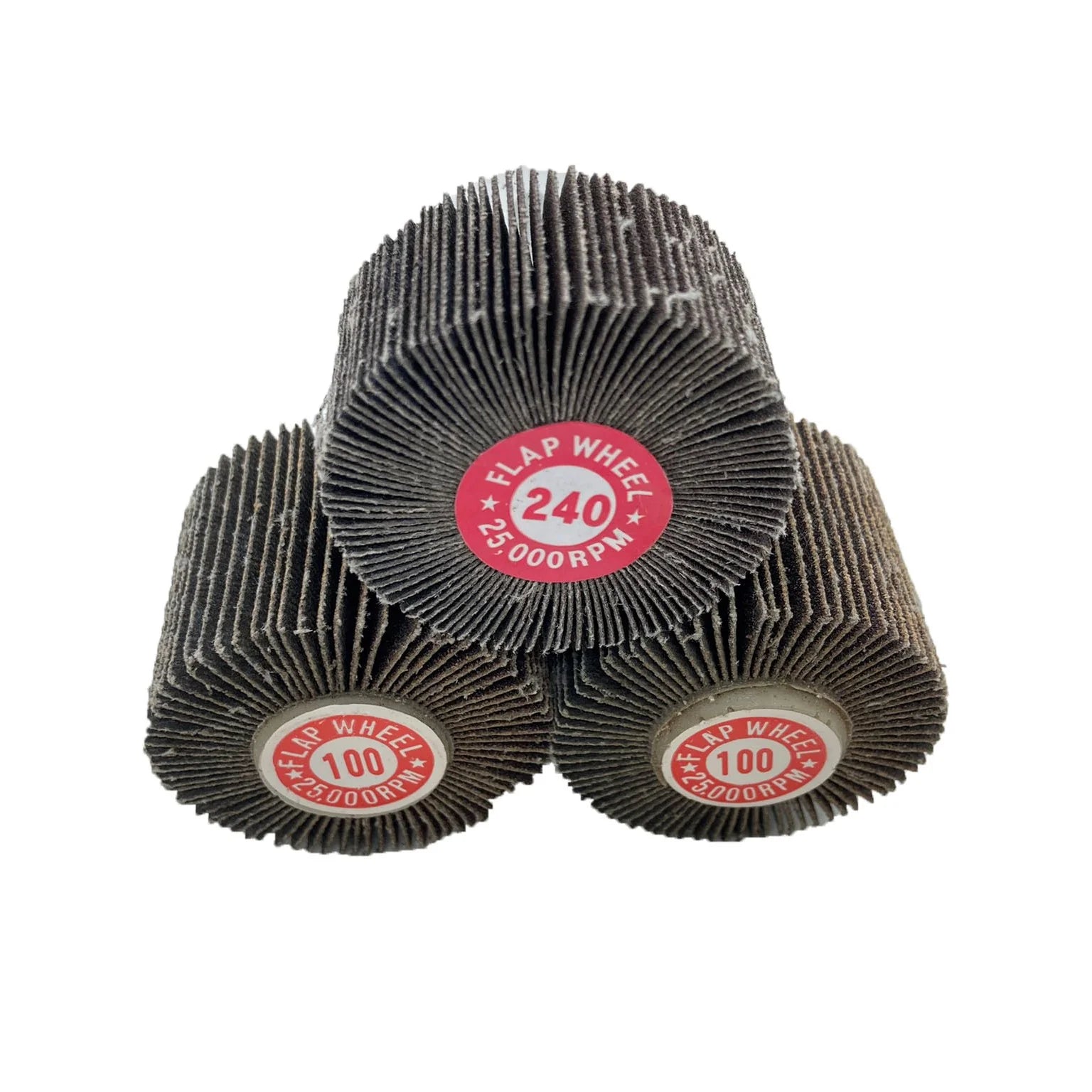

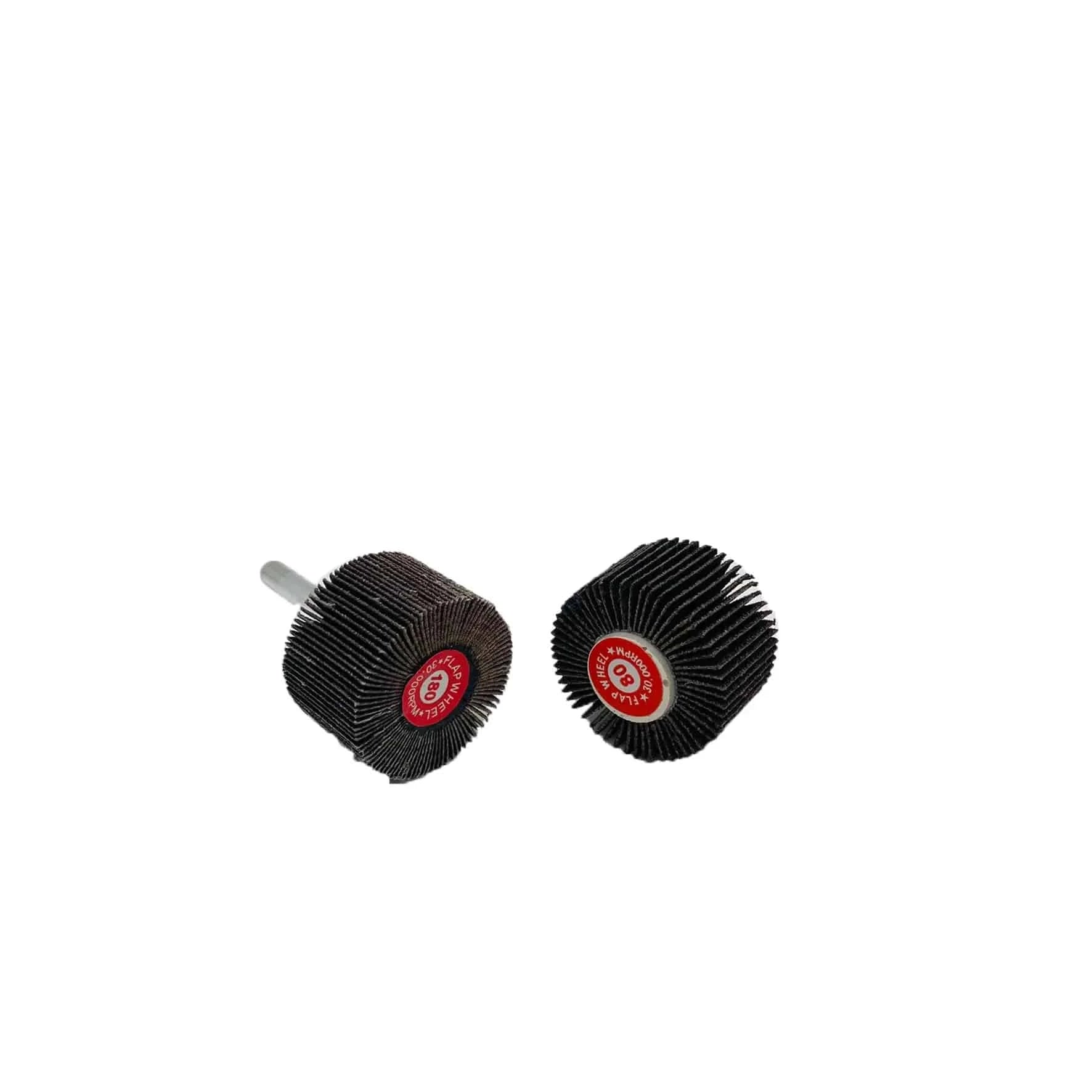

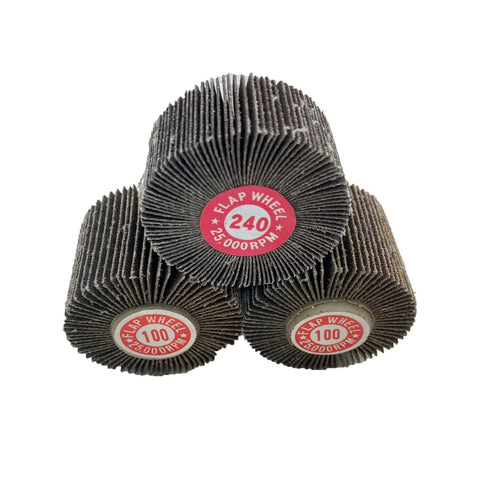

Flap Wheel 2" x 1" Mounted Aluminum Oxide, Pack of 10
Flap Wheel 2" x 1" Mounted Aluminum Oxide, Pack of 10
Available in stock (49999)
If a shop stocks one mounted flap wheel, it is usually this one. Two inches in diameter and one inch wide is big enough to blend a weld, deburr a plate edge or satin a length of tubing at a useful rate, and small enough to run in a drill, reach into a 2" bore or work the inside of a frame. The aluminum oxide cloth flaps handle steel, stainless, aluminum, brass, wood and plastic without changing wheels.
Each pack of 10 is one grit, 40 through 320, on a plain 1/4" shank or a 1/4-20 threaded shank. Maintenance departments, fabrication shops, farm and fleet shops, woodturners and serious home shops all buy the 2" x 1" as their everyday deburring and blending wheel.
- The all-round 2" x 1" size: blends, deburrs and finishes on drills as well as die grinders
- Aluminum oxide cloth flaps refresh as they wear, so the finish stays consistent
- Works on steel, stainless, aluminum, brass, wood, plastic and composites
- Plain 1/4" shank or 1/4-20 threaded shank
- 40 to 320 grit: rust and scale removal through satin pre-polish
- Pack of 10, converted in Anaheim, California; free shipping over $200
Which shank style and which grits should a shop stock?

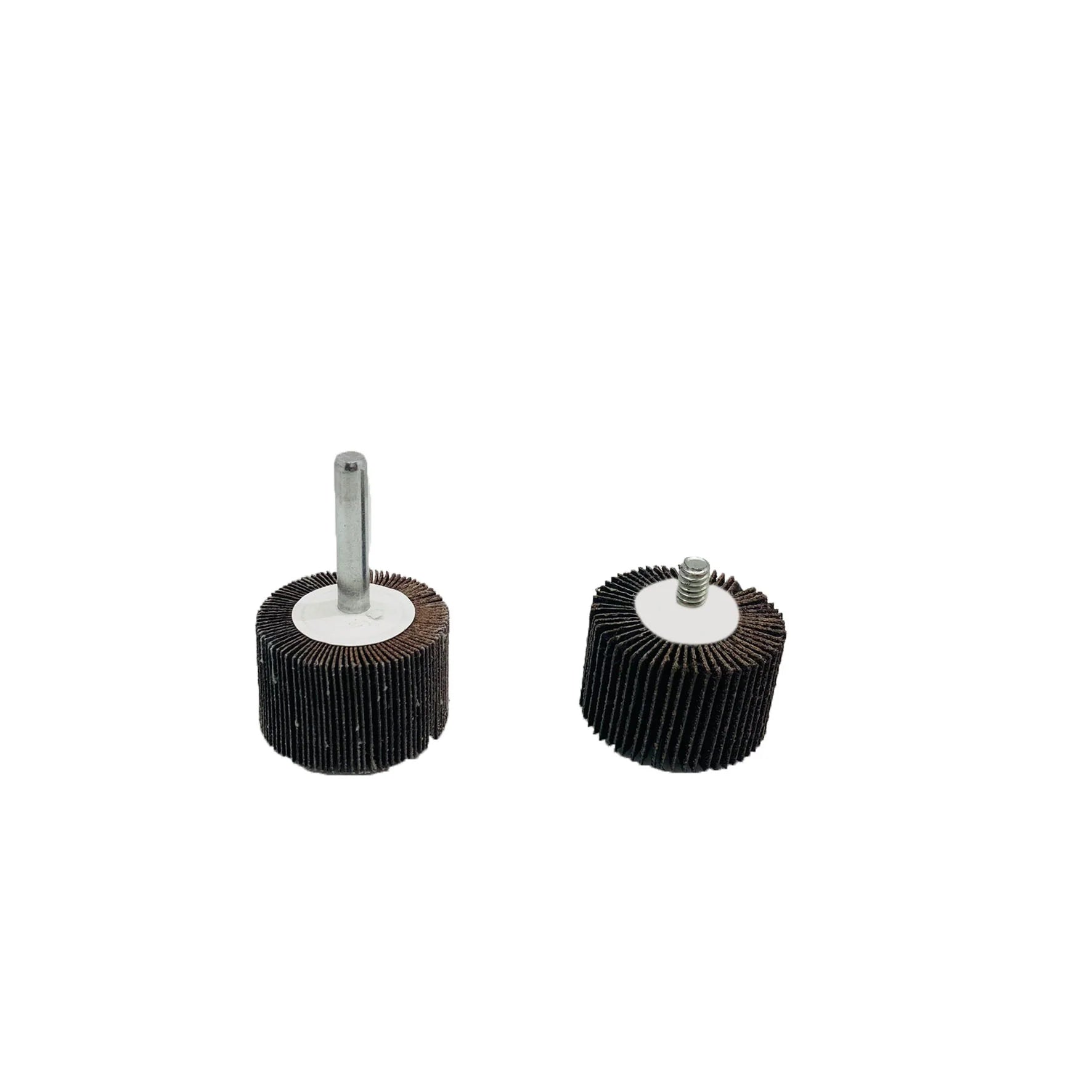

- Plain Shank: straight 1/4" steel shank. Fits any drill chuck, any die grinder with a 1/4" collet, and flex shaft handpieces. If you are not sure, this is the one.
- 1/4-20 Thread Shank: a 1/4-20 threaded stud in place of the plain shank, for mandrels, extension arbors and spindles with a 1/4-20 tapped hole. Choose it only if you already have or plan to use a threaded mandrel; it does not chuck in a collet.
A practical three-grit set for general work is 60, 120 and 240:
- 40 or 60 grit: rust, scale, paint, spatter, heavy burrs, rough castings. The 40 is for the worst of it; 60 is the everyday coarse wheel.
- 80 or 100 grit: blending weld toes, removing grinder marks, first pass on aluminum and brass.
- 120 grit: the general-purpose finishing grit under paint, and a good single grit for wood.
- 180 grit: pre-plating and pre-anodize matte, refined brushed finish.
- 240 or 320 grit: satin finishing stainless, brass and aluminum, pre-polish before compound, final sanding on turned wood.
Grit guide for general deburring, blending and finishing
| Grit | Use it for | Notes |
|---|---|---|
| 40–60 | Rust, scale, paint, heavy burrs, castings | Fast; follow with 80–120 |
| 80–100 | Weld toe blending, grinder marks, soft metals | Start here on machined steel |
| 120 | General finish under paint; wood | The most versatile single grit |
| 180 | Pre-plating matte, brushed finish | Do not skip to here from 60 |
| 240–320 | Satin, pre-polish, wood finish sanding | Light pressure to avoid heat |
What tools does a 2" x 1" mounted flap wheel fit?
- Electric and cordless drills with a standard chuck. The 2" diameter cuts properly at drill speeds, which is why this size is the maintenance and farm-shop favorite; the plain shank goes straight into the chuck.
- Straight die grinders, air or electric, with a 1/4" collet, for faster work on the bench.
- Right-angle die grinders with a 1/4" collet, for flat work and inside frames.
- Flex shaft handpieces with a 1/4" chuck or collet.
- Drill presses, with the work brought to the wheel, for repetitive deburring of small parts.
- 1/4-20 threaded mandrels and extension arbors, using the threaded shank version.
It will not fit an impact driver's hex chuck or an angle grinder's threaded spindle. Run within the RPM marked on the wheel or the tool's rating, whichever is lower; a fast die grinder can exceed the rating of a 2" wheel, a drill normally cannot.
How to get the most out of it
- Light pressure, always. The flaps only cut while they flex. Pushing harder stands them up, stops the cut, heats the part and tears cloth. If the wheel is not cutting, change to a coarser grit.
- Keep the flaps trailing. Move the tool so the flap tips drag across the work. If it grabs, hops or throws the part, reverse your direction.
- Keep it moving. Overlapping strokes, never a stationary wheel; a parked flap wheel digs a hollow in aluminum and wood in seconds.
- Use the whole face. Lay the 1" face flat to finish a surface; use the corner only deliberately, for edge-breaking, because it wears the wheel unevenly.
- Respect the speed rating. Stay within the RPM marked on the wheel or on the tool, whichever is lower.
- Run dry and clear with air. Paint, aluminum and resinous wood pack the flaps. Blow the wheel out and lighten up rather than pressing harder.
- Wear eye protection. Flap wheels throw grit and, when worn or overspeeded, pieces of cloth.
Use it for / don't use it for
Use it for
- Deburring plate edges, drilled holes and machined parts in steel, stainless and aluminum
- Blending weld toes and grinder marks on frames, brackets, gates and trailers
- Removing rust, scale and old paint from tools, fittings, hardware and equipment
- Satin finishing tubing, handrails, brass and aluminum trim
- Sanding turned bowls, spindles, carvings and curved furniture parts
- Cleaning the inside of tubing, pipe and housings from about 2" ID up
Don't use it for
- Grinding welds flush or heavy stock removal; use a flap disc or a coarse belt
- Cutting, slotting or notching
- Narrow grooves, keyways and tight inside corners; use a 1/2" wide wheel
- Bores under 2", where the flaps cannot flex
- Impact drivers, angle grinders, or any tool above the RPM marked on the wheel
Specifications
| Size | 2" diameter x 1" face width |
|---|---|
| Abrasive grain | Aluminum oxide on cloth flaps |
| Construction | Radially arranged cloth flaps on a hub, mounted on a steel shank |
| Shank options | Plain 1/4" shank or 1/4-20 threaded shank |
| Grits offered | 40, 60, 80, 100, 120, 180, 240, 320 |
| Pack quantity | 10 wheels of one grit and shank style |
| Wet or dry | Dry |
| Speed | Within the RPM marked on the wheel or the tool's rating |
| Also available | 2" x 1/2" narrow and 2" x 1-1/2" wide; 1" to 3" mounted; 6" to 12" unmounted |
| Converted in | Anaheim, California |
Frequently asked questions
If I only buy one size of mounted flap wheel, should it be the 2" x 1"?
For most shops, yes. The 2" x 1" is large enough to blend welds and deburr plate at a useful pace, small enough to run in a drill or enter a 2" bore, and its 1" face suits both surfaces and edges. Add a 1/2" wide wheel later for grooves and corners, and a 3" wheel if you finish large flat areas.
Will a 2" x 1" flap wheel fit a cordless impact driver?
No. Impact drivers take 1/4" hex bits, and these wheels have a round 1/4" shank, so it will not lock in. Use a drill with a chuck, a die grinder with a 1/4" collet or a flex shaft. Impact drivers also hammer rather than spin smoothly, which would shake flaps loose.
Which grit should I use on steel versus aluminum?
On steel start at 60 or 80 grit for deburring and blending and finish at 120 or 180. On aluminum start one grit coarser than you would expect, 60 or 80, because fine grits load quickly, then move to 120 and 240 with light pressure and clear the flaps with air. Both metals satin well at 240 to 320.
Is the 2" x 1" flap wheel good for sanding turned bowls?
Yes. Woodturners run it in a drill or flex shaft against the spinning or stationary bowl to remove tool marks and fair curves. Use 80 or 120 to remove tearout and 180 to 320 to finish. Keep the wheel moving and pressure light; a dwelling flap wheel dishes soft wood and burns dense species like maple.
Why did the flaps tear off my wheel?
Almost always pressure or speed. Pressing hard folds the flaps back until they tear at the hub; running above the RPM marked on the wheel does the same, especially on a fast air die grinder. Feeding into the flaps instead of trailing them can also catch an edge and rip a flap. Lighter touch, lower speed, trailing direction.
Plain shank or 1/4-20 thread shank for a drill?
Plain shank. A drill chuck grips the straight 1/4" steel shank directly. The 1/4-20 thread shank is a threaded stud meant to screw into a mandrel or extension arbor that has a tapped 1/4-20 hole; a chuck cannot grip threads securely. Choose threaded only when you already run that type of mandrel.
How is the 10-pack priced for larger orders?
Each pack has 10 wheels of one grit and one shank style. Orders over $200 ship free, unused wheels in original packaging can be returned within 30 days, and case or bulk pricing for maintenance and fabrication shops is available by calling 714-646-3299 or emailing sales@maverickabrasives.com.
